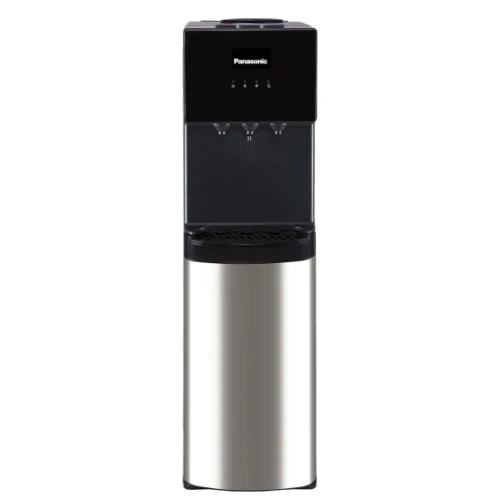

Panasonic water Dispenser - SDMWD 3320/3238

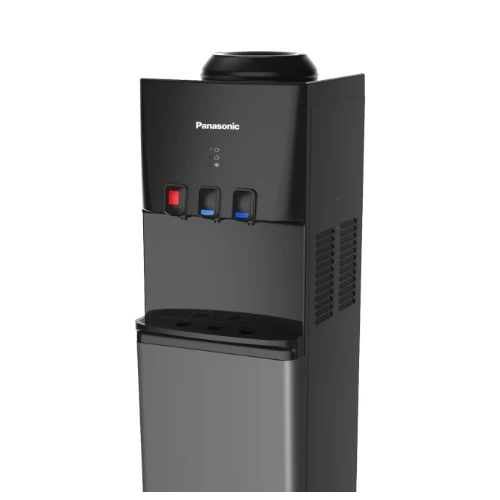

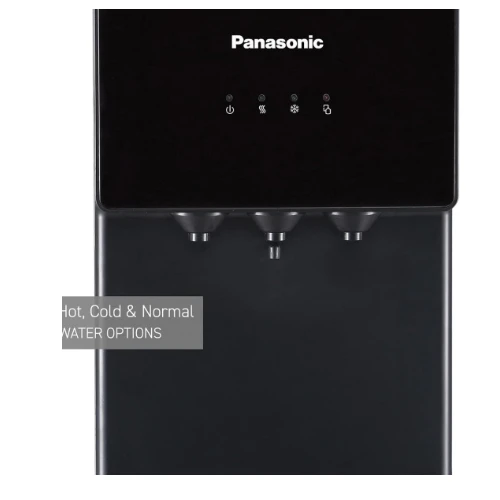

Get the Panasonic Top-loading Water Dispenser for your home and stay hydrated at all times. Its 2L tank capacity prevents the need for frequent refills. The top-loading design allows for easy, quick, and mess-free refilling. The dispenser offers hot, cold, and normal water options, letting you pick as per your requirement.
Safe and Convenient: With the anti-fingerprint finish, the Panasonic water dispenser is easy to clean. The overheat protection system prevents the system from heat damage. Moreover, the child safety lock for hot water faucet prevents accidental burns to your little one.
Spill-free Use: With the sleek and easy-to-use faucet, you can get a glassful of water without spills and mess. The water dispenser has a 2L tank capacity to prevent the need for refilling.

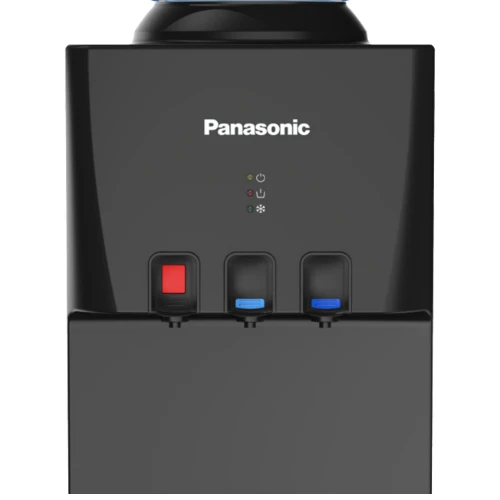

3 TAPS / CHILD LOCK/COOLING
Double safety device for preventing overheat
High efficiency compressor cooling
Multi-Frequency - 50-60 Hz
High power stainless steel hot water tank
Push Button
SPECIFICATIONS:
- Water bottle position- Top load

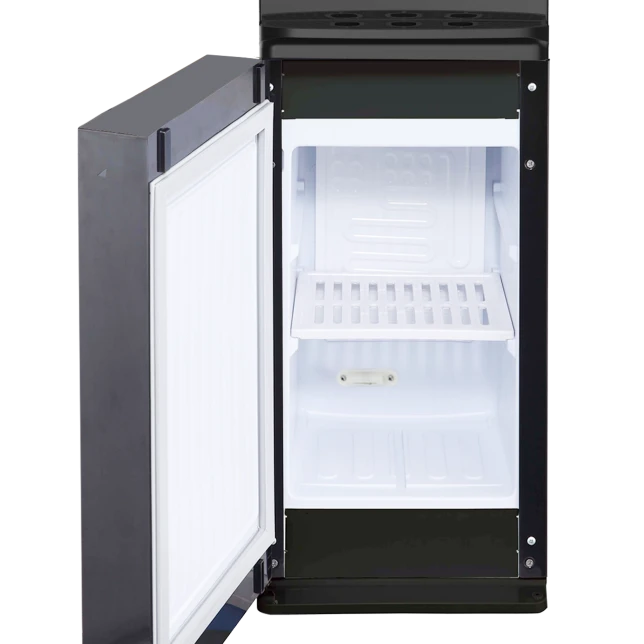

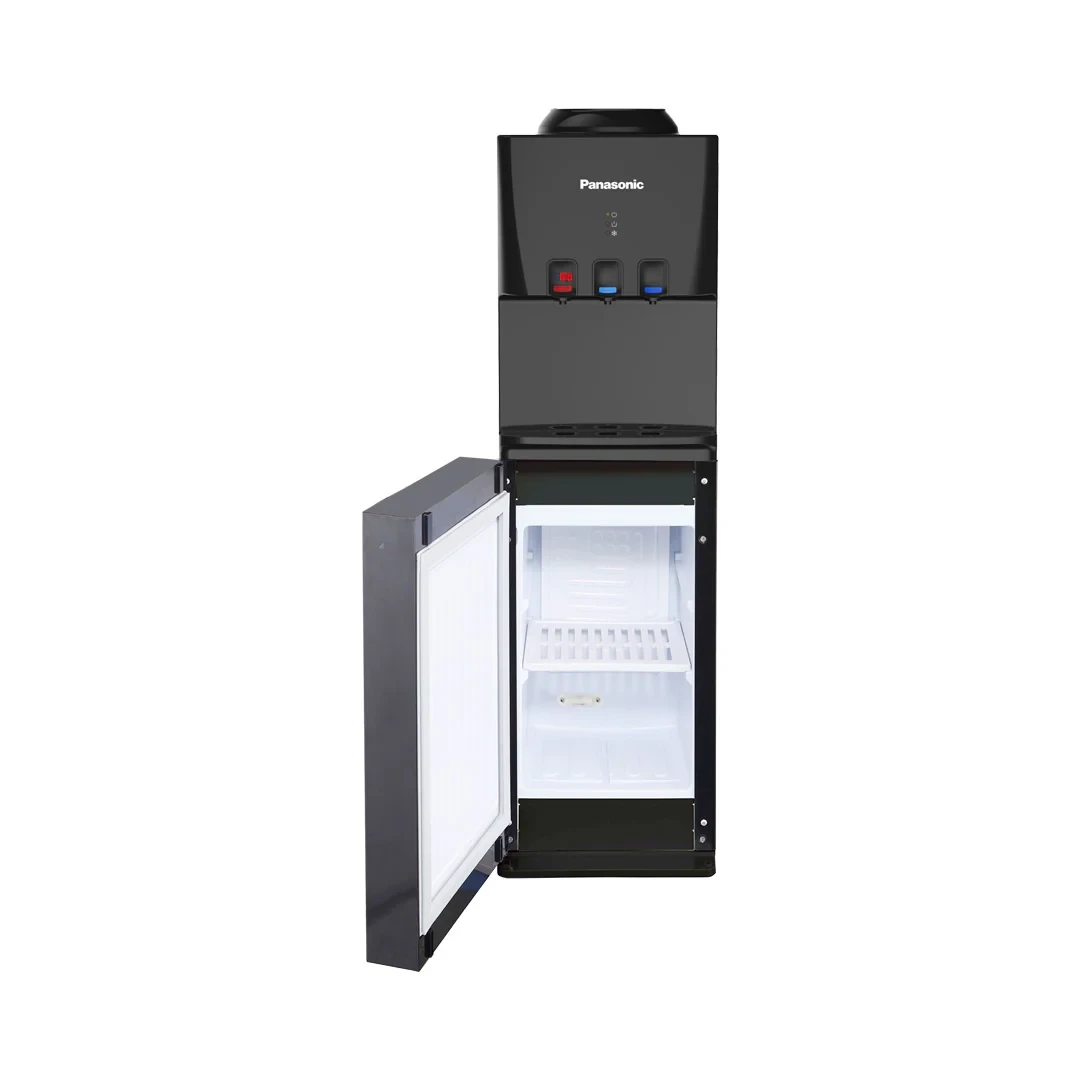

- Bottom Refrigerator-
- With 20L Refrigerator
The thermostat for the Refrigerator cabinet, off 9.5℃, starts at 12℃
- Voltage/Frequency- 220~240V/50~60Hz
- Cooling Method- Compressor
- Compressor- PW2.0VKMF
- Heating Method – Internal Element
- Refrigerant type and weight – R134a/36g
- Sound (dBA) – ≤55dB
- Heated water temperature -(°C) – ≥85℃
- Heated water capacity min at 25 (°C) Ambient (L/hr) – 4L/H
- Chilled water temperature – nominal – (°C) – ≤10℃
- Chilled water capacity min at 25 (°C) Ambient (L/hr) – 2L/H
- Rated power – 520W
- heating watts (W) – 420W
- Cooling A – 1A
- Water Supply – Bottle Water
- Chilled water – ≥1.2L/Min
- Room Temperature Water – ≥1.0L/Min
- Hot Water – ≥1.2L/Min
- Typical Operating Ambient Temperature (°C) – 10-38℃
- Operating Humidity – ≤90%
- Water Temperatures – 3
- Ambient water – Y
- Water Spouts – 3
- Cold water tank material – SUS304
- Hot water tank material – SUS304
- Hot Tank dimension (ID X length) mm – φ100 *130（1.02L）
- Hot water pipeline – silicone tube
- Cold Tank dimension (ID X length) mm – φ160 *155（3L）
- Cold water pipeline- silicone tube
